- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Product Series
- Q63
- Product Type
- Network Camera

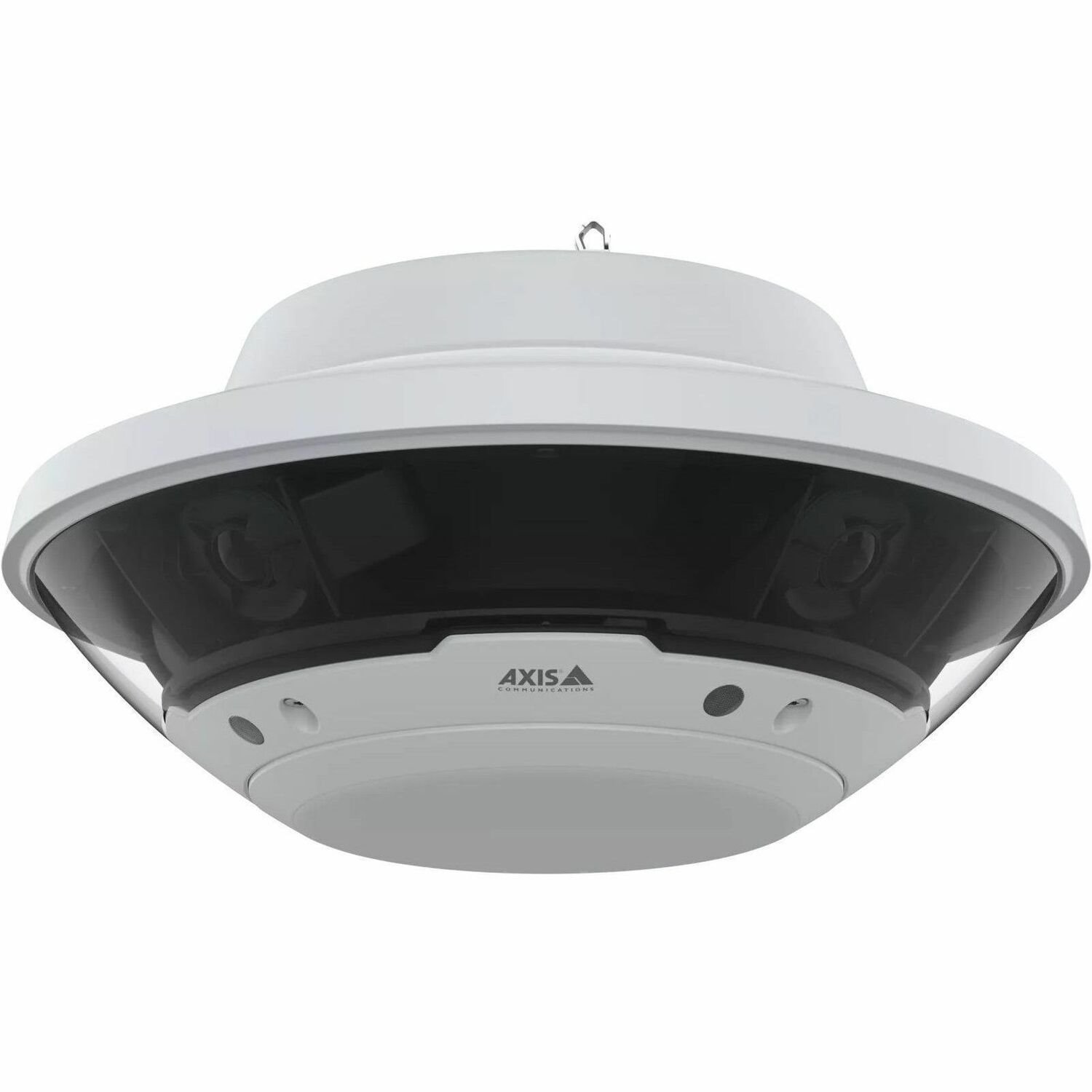

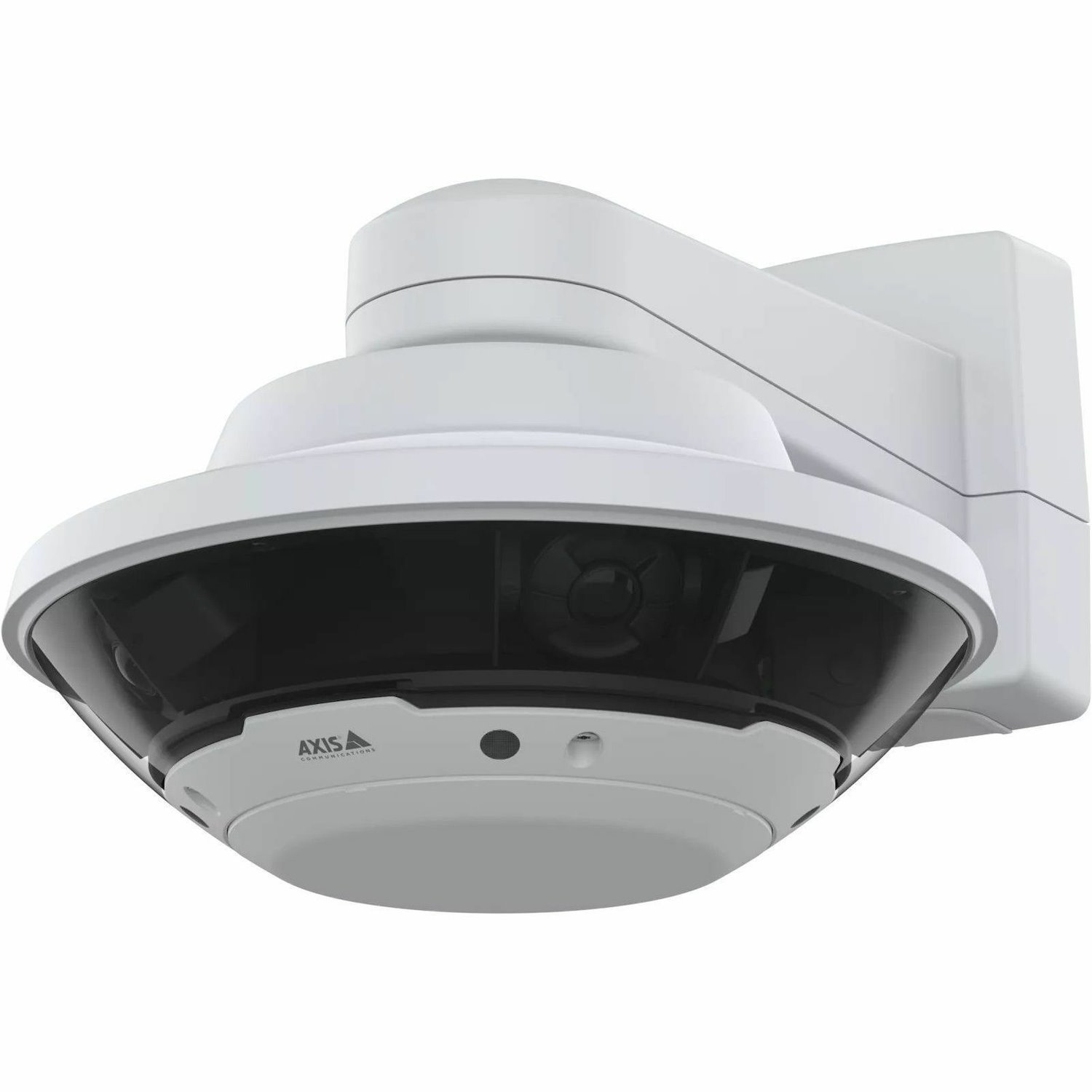

This multidirectional camera offers 4x5 MP with four ½" sensors. Designed for operation with AXIS Q61/Q63/P56 PTZ Series, you can move from overview to zoomed-in details in one click. Directional audio detection redirects the PTZ camera to the audio source whenever an audio incident is detected. A deep learning processing unit lets you run advanced features and powerful analytics at the edge. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Furthermore, a USB port allows installers to insert a Wi-Fi dongle and quickly see the camera view as they adjust it.
- 360° camera with 4 x 5 MP sensors
- Current AXIS Q61/Q63/P56-E PTZ Camera recommended
- Easy installation with support for Wi-Fi dongle
- Directional audio detection
- Built-in cybersecurity with Axis Edge Vault
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- HD Recording
- Yes
- Night Vision Type
- Infrared
- Camera Iris
- Fixed
- AI-powered
- Yes
- Infrared (IR) Cut-off Filter
- Yes
- Languages Support
- English
- German
- French
- Spanish
- Italian
- Russian
- Simplified Chinese
- Japanese
- Korean
- Portuguese
- Polish
- Traditional Chinese
- Dutch
- Czech
- Swedish
- Finnish
- Turkish
- Thai
- Vietnamese
- Wide Dynamic Range Detail
- 120 dB
- Display & Graphics
- Image Sensor Type
- RGB CMOS
- Image Sensor Size
- 1/2"
- Color Supported
- Color
- Field of View
- Horizontal field of view: 360°, 108.4° for each sensor Vertical field of view: 84°
- Effective Camera Resolution
- 5 Megapixel
- Number of Sensors
- 4
- Video
- Video Formats
- H.264B (MPEG-4 Part 10/AVC)
- H.264M (MPEG-4 Part 10/AVC)
- H.264H (MPEG-4 Part 10/AVC)
- H.265 (MPEG-H Part 2/HEVC)
- Motion JPEG
- Zipstream
- H.265
- H.264
- Maximum Video Resolution
- 2592 x 1944
- Maximum Frame Rate
- 30 fps
- Audio
- Audio Support
- Yes
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 3.70 mm
- Lens Included
- Yes
- Lens Mount Type
- M14
- Maximum Aperture
- f/2.0
- Exposure
- Shortest Shutter Speed
- 1/66500 Second
- Longest Shutter Speed
- 2 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Gigabit Ethernet
- Protocols
- DHCPv4/v6
- ARP
- SSH
- LLDP
- CDP
- MQTT v3.1.1
- UDP/TCP/TLS
- ZeroConf
- IPv6 USGv6
- ICMPv4/ICMPv6
- HTTP
- HTTPS
- HTTP/2
- TLS
- FTP
- SFTP
- CIFS/SMB
- SMTP
- mDNS (Bonjour)
- UPnP
- SNMP (v1/v2/v3)
- SNMP (MIB-2)
- DNS/DNSv6
- DDNS
- NTP
- NTS
- RTSP
- RTP
- SRTP/RTSPS
- TCP
- UDP
- IGMPv1/v2/v3
- RTCP
- ICMP
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Internal Memory
- 8 GB
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 103.40 W
- Power Source Type
- PoE
- Physical Characteristics
- Form Factor
- Dome
- Color Family
- White
- Product Color
- White
- Product Material
- Polycarbonate
- Aluminum
- Weight (Approximate)
- 8.82 lb
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Minimum Storage Temperature
- -40°F (-40°C)
- Maximum Storage Temperature
- 149°F (65°C)
- Minimum Operating Humidity (Condensing)
- 10%
- Maximum Operating Humidity (Condensing)
- 100%
- Minimum Storage Humidity (Non-condensing)
- 5%
- Maximum Storage Humidity (Non-condensing)
- 95%
- Miscellaneous
- Features
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- 3D Digital Noise Reduction
- 2D Digital Noise Reduction (2DNR)
- Wide Dynamic Range
- Audio Compression
- Human Detection
- Face Detection
- Vehicle Detection
- Active Tampering Alarm
- Indoor/Outdoor
- Indoor/Outdoor
- Package Contents
- Q6300-E Panoramic Camera
- Adapter bracket
- installation guide
- Owner authentication key
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
