Ensure your 4K content is always on display on the right screens. The HDMI 2.0 Splitter supports HDMI 2.0 with resolutions up to 4K @ 60 Hz 4:4:4 8-bit and is HDCP 2.2 compliant. This device also supports EDID and HDCP management, which authenticates HDCP encryption between all devices, ensuring the HDMI source reliably outputs the correct content to the displays.
With increased bandwidth up to 18 Gbps, you can split video signals to four displays while maintaining:
- Higher resolutions
- Higher frame rates
- Multiple full HD streams in the same pipe
- 21:9 aspect ratio
- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Packaged Quantity
- 1
- Product Type
- Signal Splitter
- Warranty
- Limited Warranty
- 3 Year
- Video
- Maximum Video Resolution
- 4096 x 2160

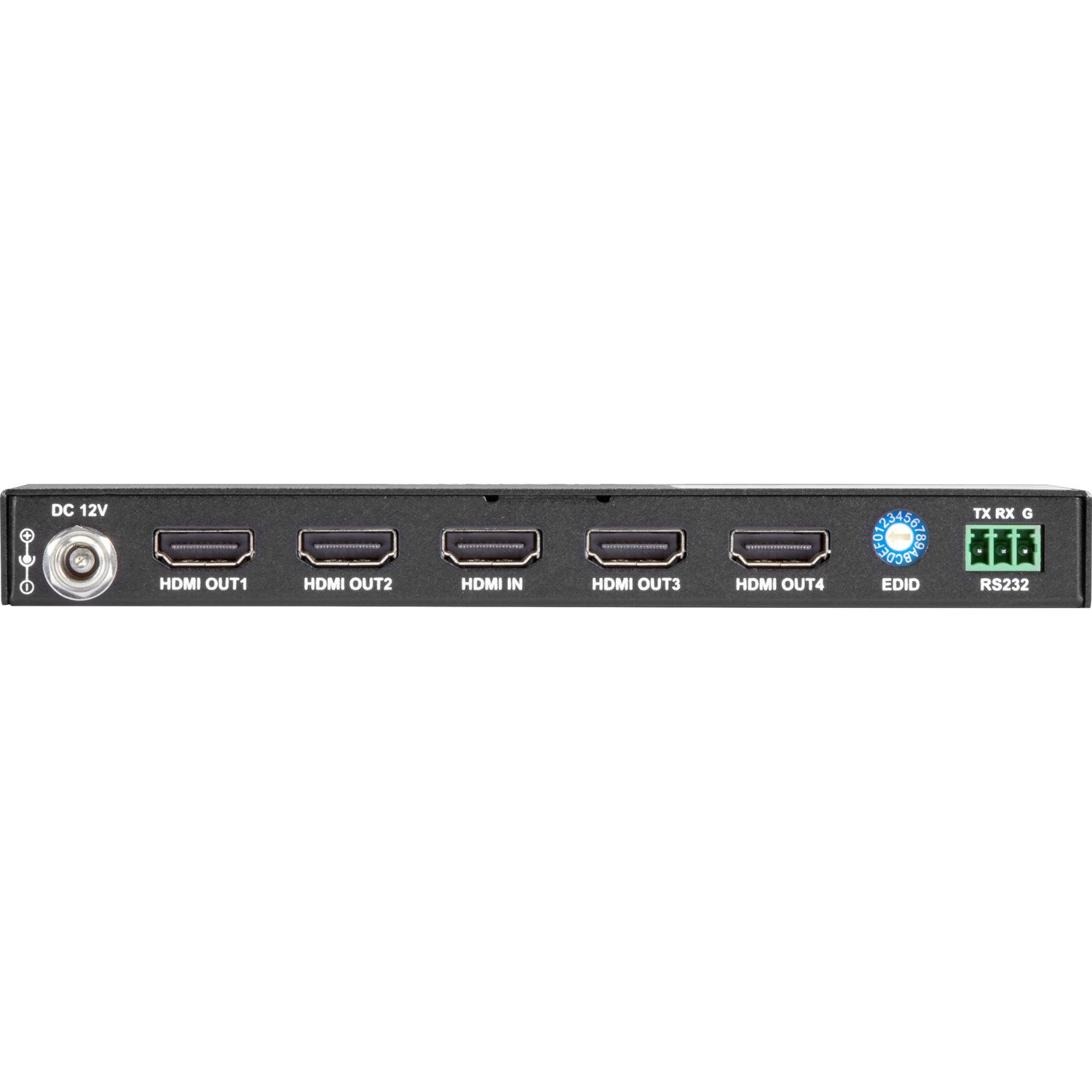

- Interfaces/Ports
- HDMI In
- Yes
- HDMI Out
- Yes
- Serial Port
- Yes
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 4
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Physical Characteristics
- Product Material
- Metal
- Height
- 0.7"
- Width
- 6.6"
- Depth
- 2.7"
- Length
- 9.5"
- Weight (Approximate)
- 10.56 oz
- Miscellaneous
- Package Contents
- HDMI 2.0 4K60 Splitter - 1x4
- 1 x Power Supply (12 VDC, 1 A)
- 2 x Mounting Brackets
- Country of Origin
- China
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS) 2
