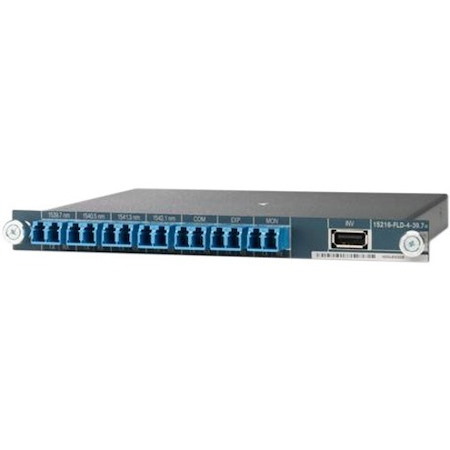

The Cisco ONS 15216 4 Channel Optical Add/Drop Multiplexers (OADMs) are a set of passive OADMs that allow the Cisco ONS 15454 Multiservice Transport Platform (MSTP) to address the edge of the optical network in a cost-effective manner without sacrificing operational ease of use. The Cisco ONS 15216 4 Channel OADMs are well suited to applications with minimal wavelength requirements and tight space and power constraints, such as cell site and customer premises terminations. Ten models are available, covering a 40-channel 100-GHz channel plan.
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- 15200
- Product Type
- Data Multiplexer
- Warranty
- Limited Warranty
- 5 Year
- Interfaces/Ports
- Number of Data Channels
- 4
- Media & Performance
- Connectivity Technology
- Wired
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Wavelength
- 1542.94 nm
- 1543.73 nm
- 1544.53 nm
- 1545.32 nm
- Physical Characteristics
- Form Factor
- Rack-mountable
- Rack Height
- 1U
- Rack Width
- 19"
- Height
- 0.7"
- Width
- 7"
- Depth
- 6.5"
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Certifications & Standards
- Environmental: GR-63-CORE
- GR-1089
- UL60950/CSA 22.2 No. 60950-00
- IEC 60950
