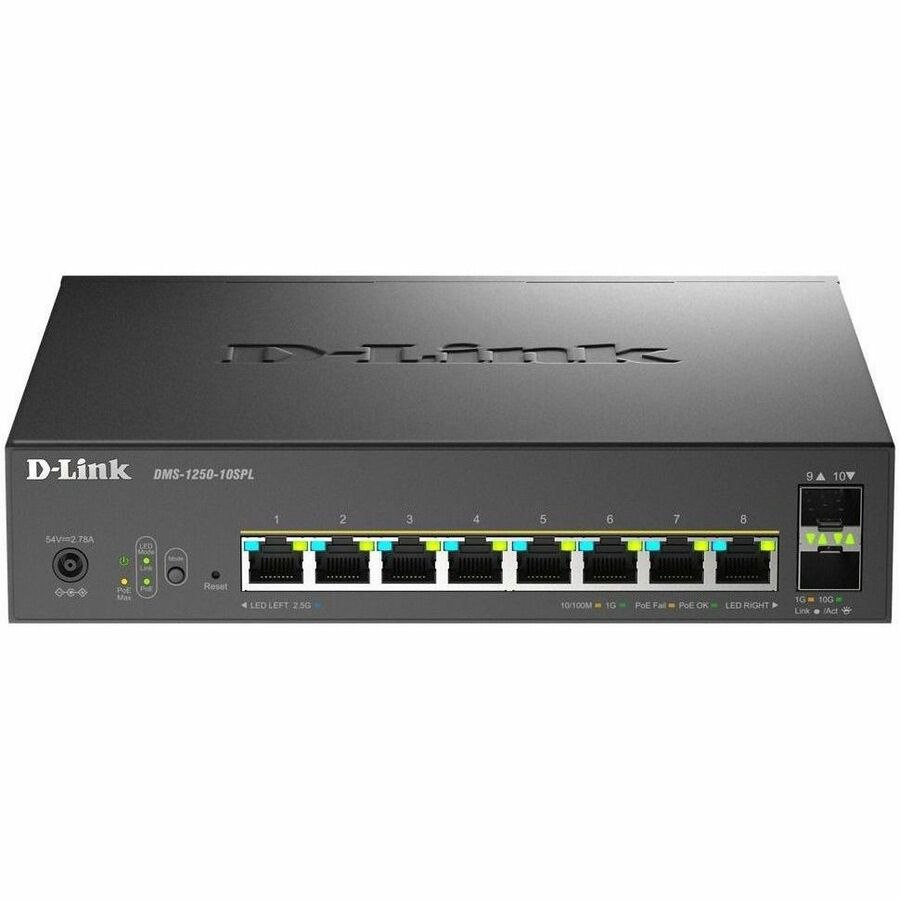

8-Port Multi-Gigabit Smart Managed Switch
DMS-1250-10SPL
- Eight 2.5Gbps Multi-G Ethernet PoE Ports
- Additional 2x SFP+ Ports
- DNC / DNH ( D-Link Nuclias Connect / Hub ) and
- D-View 8 for centralized management
- Support IEEE802.3 af/at/bt
- PoE budget up to 120W
- D-Link Safeguard Engine helps the CPU resist broadcast/multicast/unicast flooding
- 6kV surge protection on all 2.5 Gigabit Ethernet Ports
2.5G Speed, Ready for Wi-Fi 6 and More
The DMS-1250 Series switches can enhance your network by connecting a Wi-Fi 6 Access Point to any of the 2.5 Gbps ports, effectively maximizing throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, enabling your network to fully leverage the efficiency and high speeds offered by Wi-Fi 6.
Cutting-Edge PoE Features Ensuring
Reliable Power Delivery
PoE+ ports provide a high power budget to fulfill the most business needs.
The innovative PoE functions can ensure uninterrupted power delivery to the power devices.
Why PoEPoE switches simplify device installation by reducing cable usage and eliminating separate power supplies or outlets, unlike traditional switches.
- General Information
- Manufacturer
- D-Link Systems, Inc
- Manufacturer Website Address
- http://www.dlink.com
- Brand Name
- D-Link
- Product Series
- DMS-1250
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Fanless
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 100/1000/2.5GBASE-T PoE Network Port
- 2 x 10 Gigabit Ethernet SFP+ Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 100/1000Base-T
- 2.5GBase-T
- 10GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2.0
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.1x
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3x
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3bz
- IEEE 802.3an
- IEEE 802.3ae
- IEEE 802.3z
- IEEE 802.3az
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 120 W
- Input Voltage
- 5 V DC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- PoE
- Power Consumption
- 147 W
- Physical Characteristics
- Height
- 1.7"
- Width
- 8.3"
- Length
- 8.3"
- Weight (Approximate)
- 2.95 lb
- Miscellaneous
- Application/Usage
- Wireless Access Point
- Network
- Business
- IP Phone
- POS System
- Digital Signage
- Surveillance
- Laptop
- IP Camera
- Camera
- Certifications & Standards
Safety
- CB
- UL
- BSMI
EMI
- CE Class A
- VCCI Class A
- FCC Class A
- IC
- BSMI
- RCM
