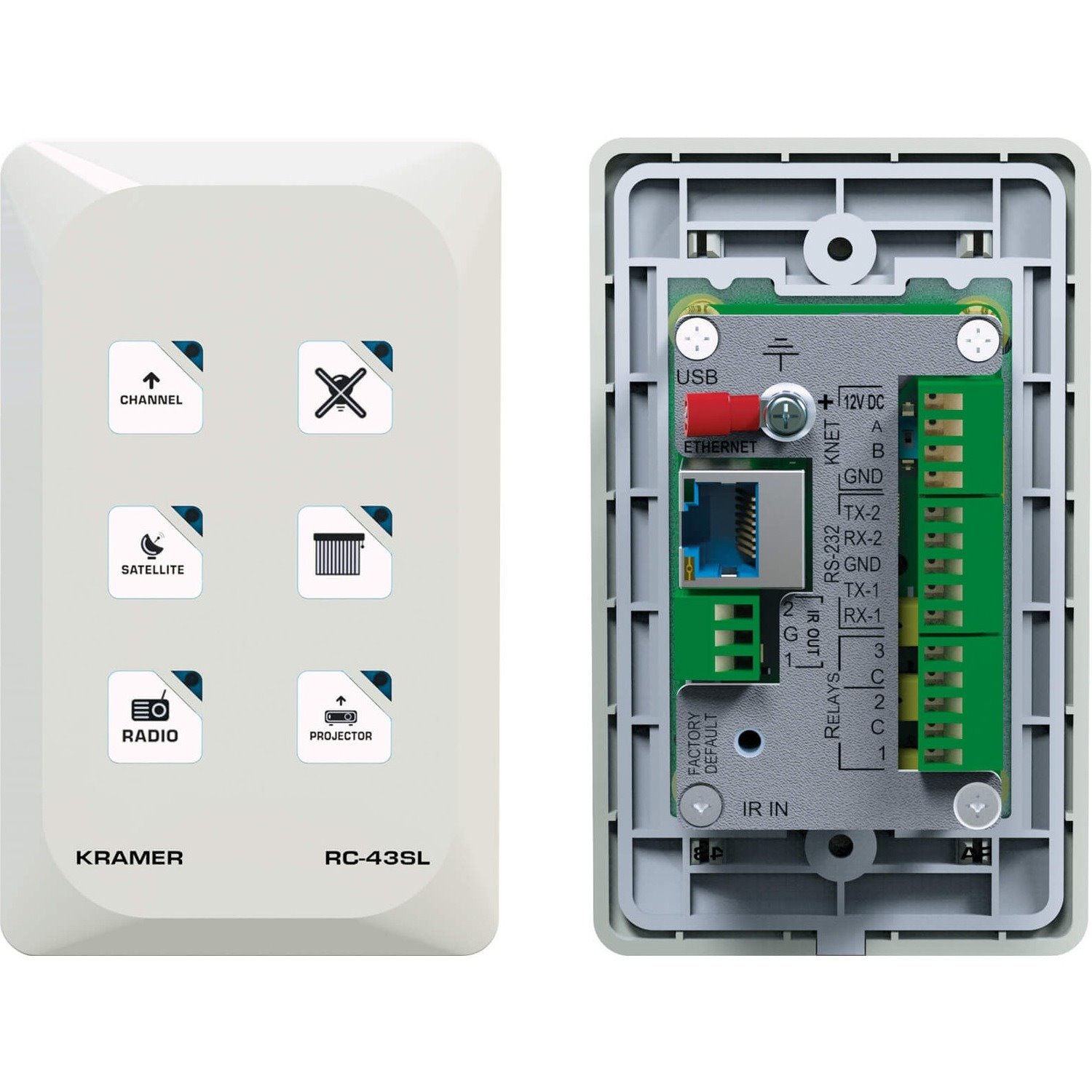

The RC-43SL is a touch-sensitive 6-button control keypad. Connected over Ethernet to Site-CTRL™ remote AV control, site management & monitoring system, as well as LAN-connected control gateways for extended controlled devices capacity. It also connects over KNET™ to master room controller and auxiliary keypads for remote keypad control. It can flexibly serve either as a standalone room controller, part of multi-units KNET™ system, or part of multi-unit Ethernet system managed by Kramer Site-CTRL™ site management platform. The RC-43SL is ideal for auditoriums and meeting rooms, for convenient control of their complex multimedia systems and other room facilities such as screens, lighting and shades.
- Touch-Sensitive & Label Capable Buttons - 6 white-color LED-feedback buttons.
- Custom Labeled, Removable Button Caps.
- 1 K-NET™ Connector - Connect to master room controller, and auxiliary keypads for remote keypad control.
- K-NET™ Single Link Connection - Provides a single keypad link cable-connectivity, carrying both power and keypad control.
- 2 RS-232 Bi-directional Control Ports - Control a device via bi-directional serial control protocols.
- 2 IR Emitter Control Ports - Control a device via IR control protocols.
- 3 Relay Control Ports - Control a device via Relay Contact Closure, such as scrolling up and down screens, drapes, shades, and blinds.
- IR Sensor Port - Learns commands from IR remotes.
- Program Control - Program configuration with Kramer K-Config software.
- Kramer Site-CTRL™ Compatibility - For network management and remote control over the Ethernet port.
- Mini USB Port - To upload configuration files, set the K-NET™ ID number, and power the device during configuration.
- Mounting - In-wall, in standard 1 gang US wall junction boxes.
- Easy Installation - Fits to standard in-wall boxes for simple and cost-reducing installation.
- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Type
- A/V Control Panel
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Height
- 4.5"
- Width
- 2.7"
- Depth
- 1.5"
- Weight (Approximate)
- 3.53 oz
- Miscellaneous
- Additional Information
- 6 white-color, touch-sensitive buttons
- Custom labeled, removable button caps
- 1 Ethernet port
- 1 KNET™ port
- 2 Bidirectional RS-232 ports
- 2 IR emitter ports
- 3 Relay ports
- 1 IR sensor for learning
- Site-CTRL software compatible
- Mounts in standard 1 gang US wall junction boxes
- Audio - N/A
