- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Transition Networks
- Product Series
- J/RS232
- Product Type
- Transceiver/Media Converter

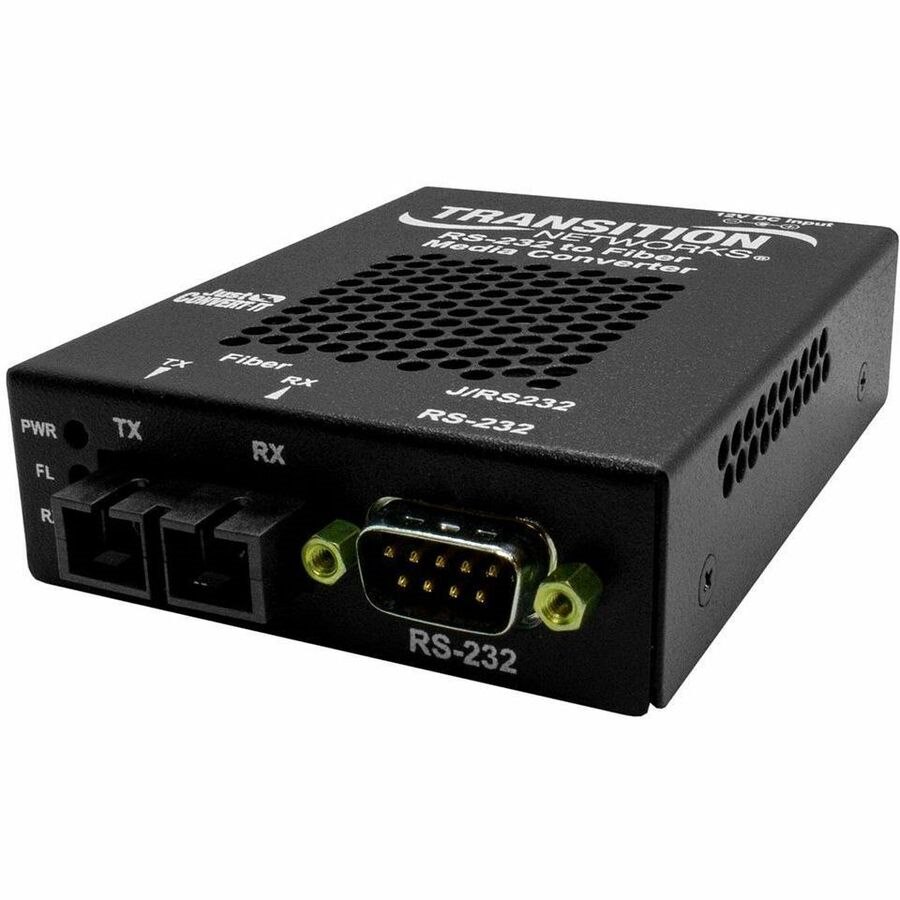

Stand-alone RS232 Media Converter RS232 Copper to Fiber
Link a remote terminal to a host computer: Connect multiple devices, such as security scanners, POS devices, remote terminals and building access/alarming systems to a host computer. Ideal for campus or business environments where remote devices can be networked in a point-to-point configuration where distances are greater than the 15 meter limitation of conventional copper serial cables.
Lantronix's serial RS232 to Fiber Media Converter is an inexpensive way to extend the distance between serial connections with the use of fiber optic cable. This converter supports full or half-duplex data transmission at speeds up to 120 Kbps. Unit and Port LEDs allow for quick status information on the converter.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Number of SC Ports
- 1
- Number of Serial Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1300 nm
- Maximum Data Transfer Rate
- 120 kbit/s
- Maximum Distance Supported
- 2 km
- Power Description
- Power Source
- AC/DC
- Input Voltage
- 230 V AC
- 120 V AC
- Power Consumption
- 3 W
- Physical Characteristics
- Form Factor
- Standalone
- Rack-mountable
- Wall Mountable
- DIN Rail Mountable
- Shelf Mount
- Height
- 1"
- Width
- 3"
- Depth
- 3.9"
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Package Contents
- J/RS232-TF-01(SC) Transceiver/Media Converter
- Power Supply - Australia
- Application/Usage
- Data
- Network
- Additional Information
- DB-9 (male) [15 m/49 ft.] to 1300nm multimode (SC) [2 km/1.2 mi.] Link Budget: 11.0 dB
- Certifications & Standards
- Safety: Wall Mount Power Supply: UL Listed and CSA certified
- Emissions: CISPR22/EN55022 Class A + EN55024, EN60950 Class A, FCC Class A, CE Mark
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
