- General Information
- Manufacturer
- Sharp Electronics
- Manufacturer Website Address
- http://www.sharpusa.com
- Brand Name
- Sharp
- Product Line
- MultiSync
- Product Type
- LED Monitor

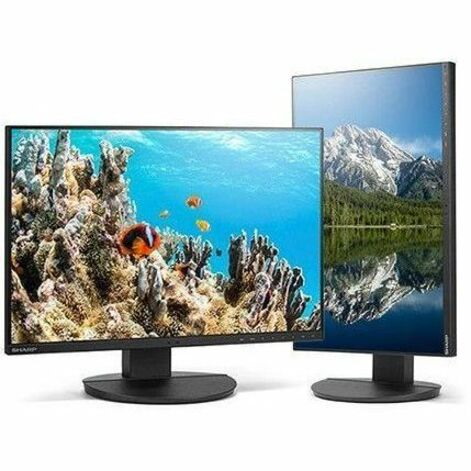

The 24" Class (24.1" diagonal) Sharp MultiSync® EA242W is a WUXGA ultra-narrow bezel IPS desktop monitor ideal for demanding commercial environments. Designed with professional color and image quality standards, this 16:10 widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA242W allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. Full-featured connectivity including HDMI, DisplayPort, USB-C, VGA and 2-port USB 3.1 hub connects users to the latest peripherals and future-proofs your investment. With DisplayPort ouput the EA242W is ideal for multiple monitor configurations and includes ControlSync™ technology which allows users to control up to six EA242W displays in a multi-monitor configuration. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Number of Screens
- 1
- Screen Size Class
- 24"
- Viewable Screen Size
- 24"
- Screen Mode
- WUXGA
- Panel Technology
- In-plane Switching (IPS) Technology
- Response Time
- 6 ms
- Aspect Ratio
- 16:10
- Pixel Pitch
- 0.27000 mm x 0.27000 mm
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Mount Type
- Desk Mountable
- Backlight Technology
- LED
- HDCP Supported
- Yes
- Features
- sRGB
- Separate Sync
- ControlSync
- Auto Brightness Control (ABC)
- Ambient Light Sensor
- Eco Mode
- Carbon Footprint Meter
- Resettable Cost Meter
- UltraNarrow Border
- Carrying Handle
- Rapid Response Technology
- Ambix Dual Input Technology
- XtraView
- On-screen Display (OSD)
- On-screen Display (OSD) Lock
- Cable Management
- Dynamic Visual Mode
- Plug & Play
- Display Power Management Signaling (DPMS)
- AccuColor
- DICOM Calibrated
- Kensington Lock
- Wide Viewing Angle
- Ergonomic Design
- Smart Sensing Technology
- Cable Lock Slot
- Adjustable Stand
- Yes
- Stand Adjustments
- Swivel
- Height
- Pivot
- Tilt
- Stand Included
- Yes
- Active Display Area (H x V)
- 20.40" x 12.70"
- Video
- Maximum Resolution
- 1920 x 1200
- Standard Refresh Rate
- 62 Hz
- Color Supported
- 16.7 Million Colors
- Native Contrast Ratio
- 1,000:1
- Brightness
- 300 Nit
- Color Gamut
- 77% Adobe RGB
- 79% Adobe RGB
- 73.1% NTSC
- 76% NTSC
- 99.8% sRGB
- 107% sRGB
- Pixel Per Inch (PPI)
- 94
- Audio
- Speakers
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI
- Yes
- USB
- Yes
- VGA
- Yes
- DisplayPort
- Yes
- USB Type-C
- Yes
- Number of USB Ports
- 2
- Ethernet Technology Details
- 1 x RJ-45 Ethernet
- Built-in Devices
- Built-in Devices
- USB Hub
- Environmental Conditions
- Operating Temperature Range
- 41°F (5°C) to 95°F (35°C)
- Operating Humidity Range
- 20% to 80% (Non-condensing)
- Maximum Operating Altitude
- 16404 ft
- Power Description
- Operating Power Consumption
- 19 W
- Standby Power Consumption
- 300 mW
- Frequency
- 50 Hz
- 60 Hz
- Maximum Power Consumption
- 65 W
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 100 x 100
- Color Family
- Black
- Product Color
- Black
- Height
- 13.7"
- Width
- 20.9"
- Depth
- 1.9"
- Height with Stand
- 20.30"
- Width with Stand
- 20.90"
- Depth with Stand
- 9.80"
- Compressed Height with Stand
- 14.40"
- Extended Height with Stand
- 20.30"
- Weight (Approximate)
- 9.30 lb
- Weight with Stand (Approximate)
- 14.80 lb
- Miscellaneous
- Package Contents
- MultiSync DD-EA242W Widescreen LED Monitor
- Power Cord
- DisplayPort Cable
- USB-C Cable
- ControlSync Cable
- Stand
- Setup Sheet
- User Manual
- Energy Star
- Yes
- TCO Certified
- Yes
- Application/Usage
- Business
- Environmental Certification
- TCO Certified 9.0
- Energy Efficiency Certification
- ENERGY STAR 8.0
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
