- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- AC Adapter

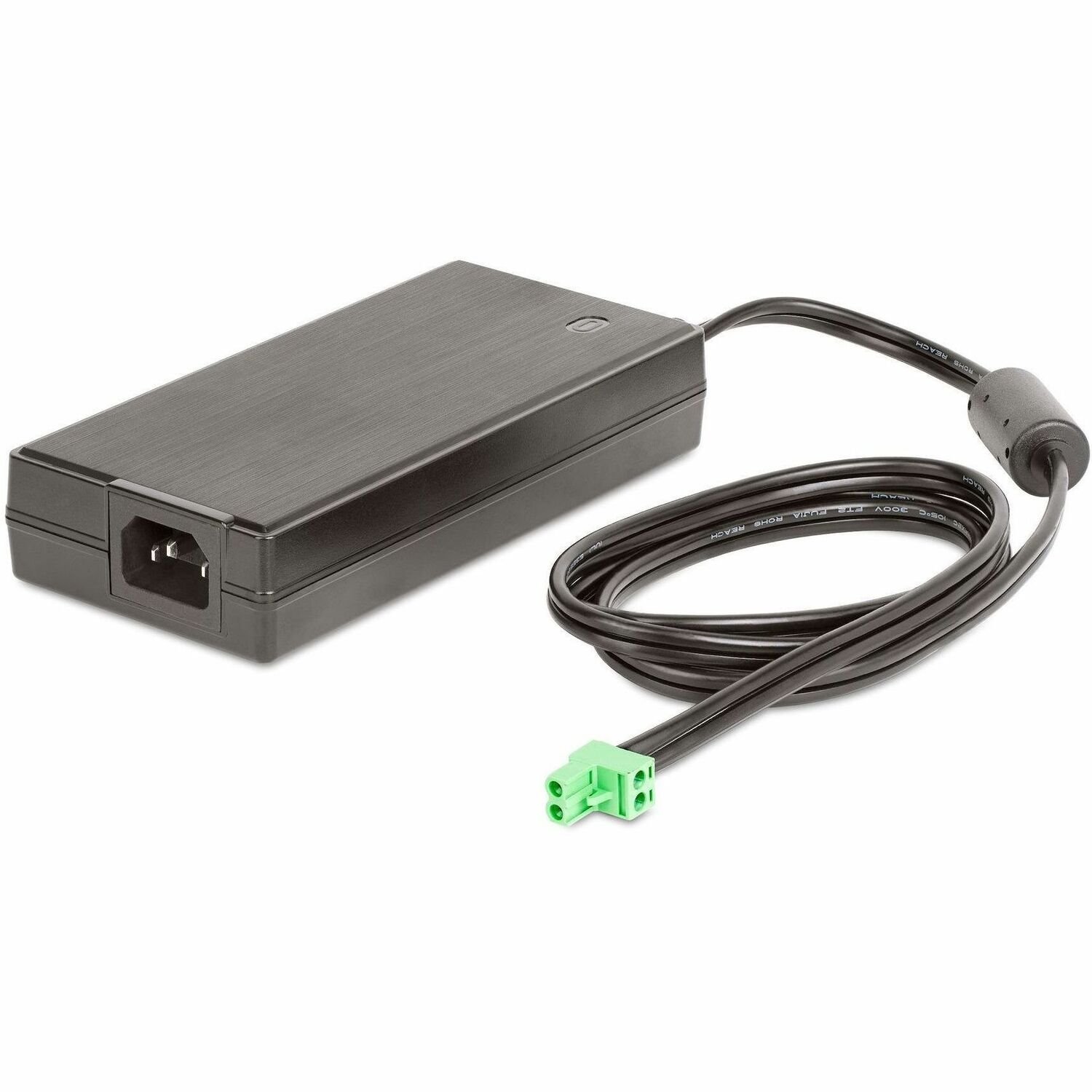

Power a StarTech.com Industrial USB Hub, or other device with a 2-or-3-wire terminal block DC input, using this 24V Universal Power Adapter.
High-Performance Universal Power Adapter
The Power Adapter features an auto-switching 100-240V AC input with a 24V/6.6A (158.4W) DC output and attached 4ft (1.2m) DC cord.
Four 4ft (1.2m) regional power cables are included, to ensure international support:
- North America - Type-A NEMA 1-15
- United Kingdom - Type-G BS 1363
- Europe - CEE 7/7
- Australia/New Zealand - Type-I AS 3112
Device Compatibility
The Power Adapter features two bare-wire leads with both 2-conductor and 3-conductor terminal block connectors included, for seamless integration with a variety of devices. This power supply can be used as an accessory and primary power source for many StarTech.com Industrial USB Hubs, such as:
- 16-Port Industrial USB 5Gbps Hub (5G16AINDS-USB-A-HUB)
- 10-Port Industrial USB 5Gbps Hub (ST1030USBM)
- 7-Port Industrial USB 5Gbps Hub (ST7300USBME)
- 7-Port Industrial USB 2.0 (480Mbps) Hub (HB20A7AME)
- 7-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (ST7200USBM)
- 4-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (HB20A4AME)
- 4-Port Industrial USB 2.0 (480Mbps) Hub (ST4200USBM)
This power adapter can also be used to replace a lost or broken power adapter, or can be kept as a redundant back-up power brick for mission critical applications for StarTech.com Industrial USB Hubs that include a power adapter, such as:
- 10-Port USB 5Gbps Industrial Hub (HB30A10AME)
- 7-Port USB 5Gbps Industrial Hub (HB30A7AME)
- 4-Port Industrial USB 5Gbps Hub (ST4300USBM)
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Device Supported
- USB Hub
- Universal Adapter
- Yes
- Cable Length
- 4 ft
- Cables Included Detail
- 4ft [1.2m] Power Cords (NA/JP, EU, UK, ANZ)
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 V AC - 240 V AC
- Output Voltage
- 24 V DC
- Maximum Output Power
- 160 W
- Maximum Input Current
- 3.50 A
- Maximum Output Current
- 6.60 A
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Material Family
- Plastic
- Height
- 1.5"
- Width
- 2.1"
- Weight (Approximate)
- 10.30 oz
- Environmental Conditions
- Minimum Operating Temperature
- 41°F (5°C)
- Maximum Operating Temperature
- 131°F (55°C)
- Minimum Storage Temperature
- -4°F (-20°C)
- Maximum Storage Temperature
- 176°F (80°C)
- Miscellaneous
- Package Contents
- AC Adapter
- 4 x 4ft [1.2m] Power Cords (NA/JP, EU, UK, ANZ)
- 1 x Two Conductor Terminal Block Connector (Attached)
- 1 x Three Conductor Terminal Block Connector
- 1 x Quick-Start Guide
- Compatibility
StarTech Products:
- 16-Port Industrial USB 5Gbps Hub (5G16AINDS-USB-A-HUB)
- 10-Port Industrial USB 5Gbps Hub (ST1030USBM)
- 7-Port Industrial USB 5Gbps Hub (ST7300USBME)
- 7-Port Industrial USB 2.0 (480Mbps) Hub (HB20A7AME)
- 7-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (ST7200USBM)
- 4-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (HB20A4AME)
- 4-Port Industrial USB 2.0 (480Mbps) Hub (ST4200USBM)
- 10-Port USB 5Gbps Industrial Hub (HB30A10AME)
- 7-Port USB 5Gbps Industrial Hub (HB30A7AME)
- 4-Port Industrial USB 5Gbps Hub (ST4300USBM)
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
