- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Server Barebone System
Supermicro's quad-processor Xeon® E7-8800/4800 v3 servers support 11 PCI-E 3.0 and up to 6TB of DDR4 memory in 96 DIMM slots. These servers are designed for enterprise mission critical applications, Cloud Computing, HPC, virtualization, and simulations.
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 4
- Processor Socket
- Socket R1 LGA-2011
- Processor Supported
- Xeon
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C602J
- Memory
- Maximum Memory Supported
- 2 TB
- Memory Technology
- DDR4 SDRAM
- Total Number of Memory Slots
- 32
- Controllers
- Controller Type
- Serial ATA/300
- Serial ATA/600
- 6Gb/s SAS
- RAID Supported
- Yes
- Display & Graphics
- Graphics Controller Model
- AST2400
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Fast Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 5
- Number of 3.5" Bays
- 5
- Total Number of Expansion Slots
- 4
- Number of PCI Express x8 Slots
- 2
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 3
- Number of SAS Interfaces
- 8
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 1400 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Tower
- Rack Height
- 4U
- Height
- 18.2"
- Width
- 7"
- Depth
- 28.4"
- Weight (Approximate)
- 65.50 lb
- Miscellaneous
- Package Contents

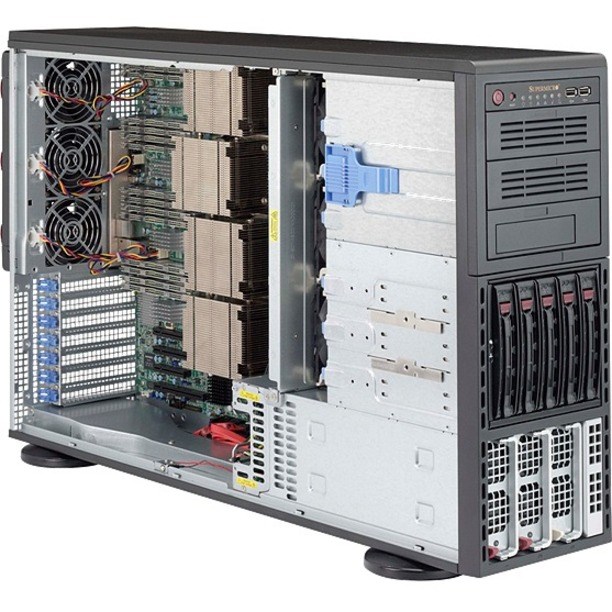

- SuperServer 8048B-C0R4FT (Black)
- 1 x CSE-748TQ-R1K43B Chassis
- 1 x Super X10QBL-4CT Motherboard
- 1 x Mylar air shroud for SC748 (X10QBL-CT),RoHS/REACH
- 1 x M35 SAS BACKPLANE W/AMI MG9072
- 2 x Internal mini SAS HD to 4 SATA 50CM, S, w/50cm SB,HF,RoHS/REACH,PBF
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 1 x Standard I/O shield for X10QBL-CT with EMI Gasket,RoHS/REACH
- 4 x 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
- 2 x 1400W redundant digital power supply
- Environmentally Friendly
- Yes
