- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- TP-Link
- Product Line
- Omada
- Product Type

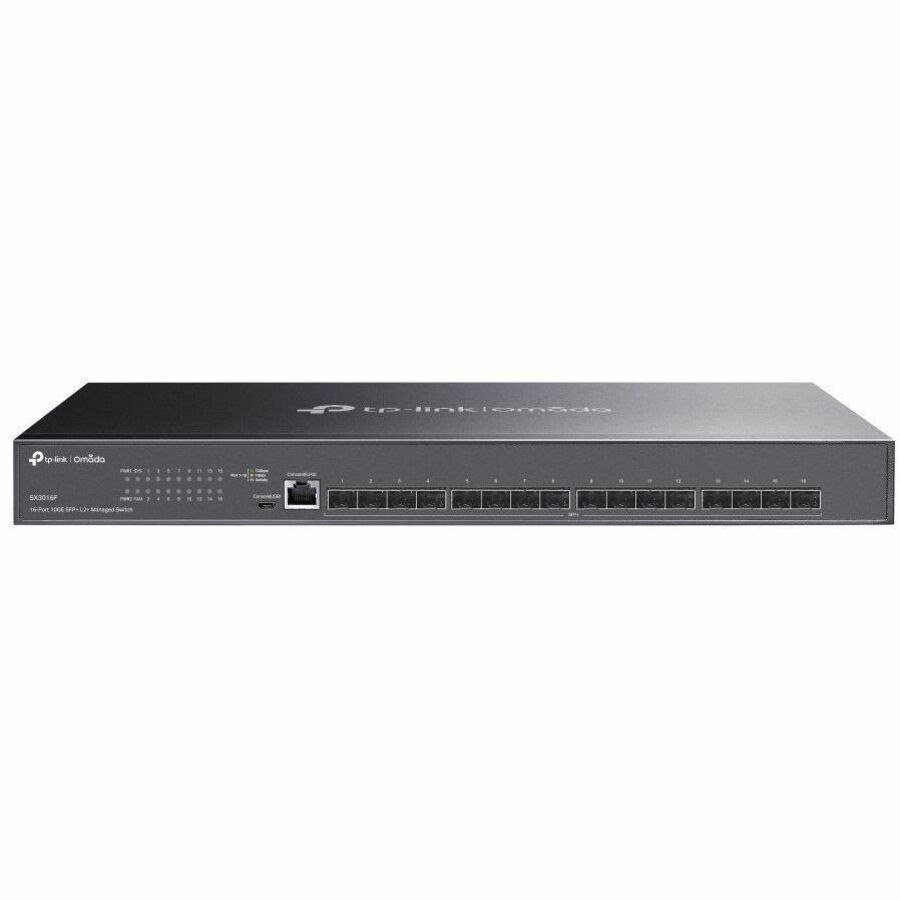

- Ethernet Switch
- Ideal for Use in Aggregation Layer
- 16 × 10 Gbps SFP+ Slots
- 1+1 Redundant Power Supply
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Ethernet Ring Protection Switching
- Static Routing
Easily Build a Whole 10G Multi-gigabit Network | 10G Router
Ensures the fast way
Full 10G Fiber Switch
Lightning-fast aggregation switching
Switch with 10G Uplink
PoE Switch with 10G Uplink
Wi-Fi 7/6 APs with 10G/2.5G Ports
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Technical Information
- Features
- Fanless
- Intelligent monitoring
- Interfaces/Ports
- Modular
- Yes
- Port/Expansion Slot Details
- 16 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 16
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 16
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.1x
- IEEE 802.3ah
- IEEE 802.1ab
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- AC
- Power Supply
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 32.74 W
- Physical Characteristics
- Product Material
- Metal
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 8.7"
- Miscellaneous
- Application/Usage
- Network
- Certifications & Standards
- CE
- FCC
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
