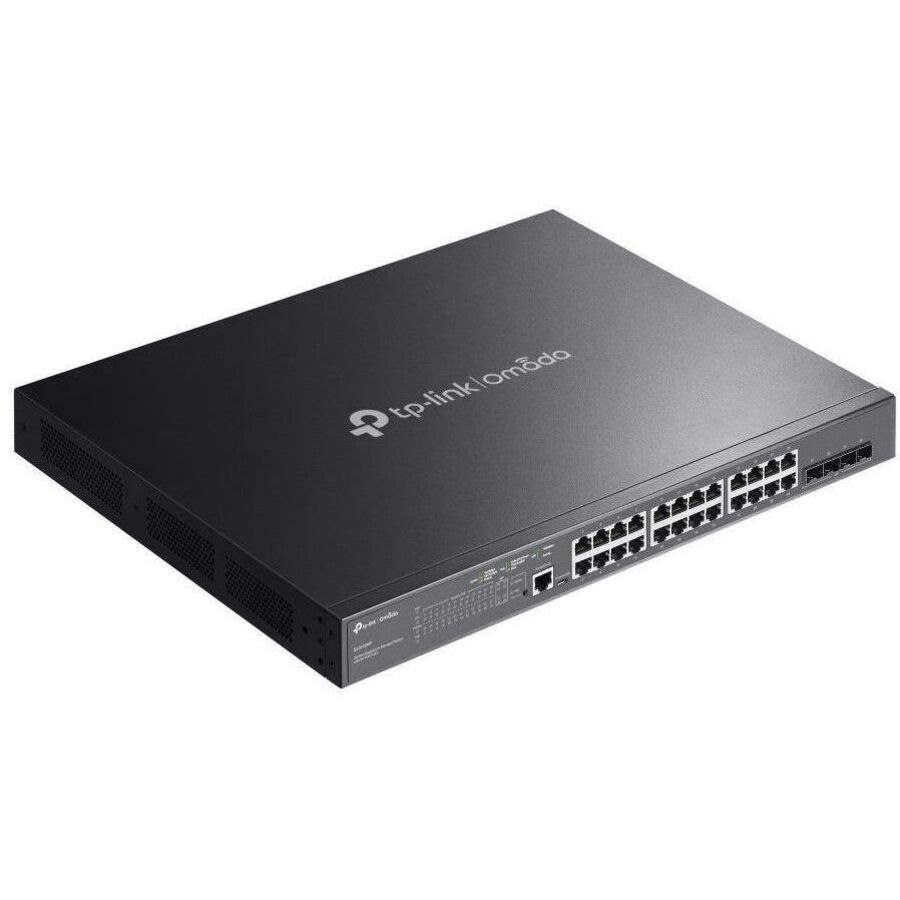

Omada 28-Port Gigabit L2+ Managed Switch with24-PortPoE+
- 24× Gigabit PoE+ Ports,
- 4× Gigabit SFP Slots
- 384 W Total PoE Budget
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Ethernet Ring Protection Switching
- Traffic Separation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios | Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- Omada
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Remote Monitoring (RMON)
- DHCP Relay
- Link Aggregation
- Loopback Detection
- Intelligent monitoring
- DHCP Snooping
- Zero-Touch Provisioning (ZTP)
- Interfaces/Ports
- Total Number of Network Ports
- 25
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet PoE+
- 44 x Gigabit Ethernet Expansion Slot
- 1× RJ45 Console Port
- 1× Micro-USB Console Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 4
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.3ah
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3ab
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3af
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 384 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- AC
- Power Consumption
- 480.10 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Metal
- Compatible Rack Unit
- 1U
- Form Factor
- Standalone
- Rack-mountable
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 13"
- Miscellaneous
- Package Contents
- 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
- Application/Usage
- Traffic
- Network
- Server
- Surveillance
- IP Camera
- Conference Room
- IP Phone
- Wireless Access Point
- Desktop
- Printer
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
