- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Packaged Quantity
- 40 / Case
- Product Type
- PoE Surge Protector

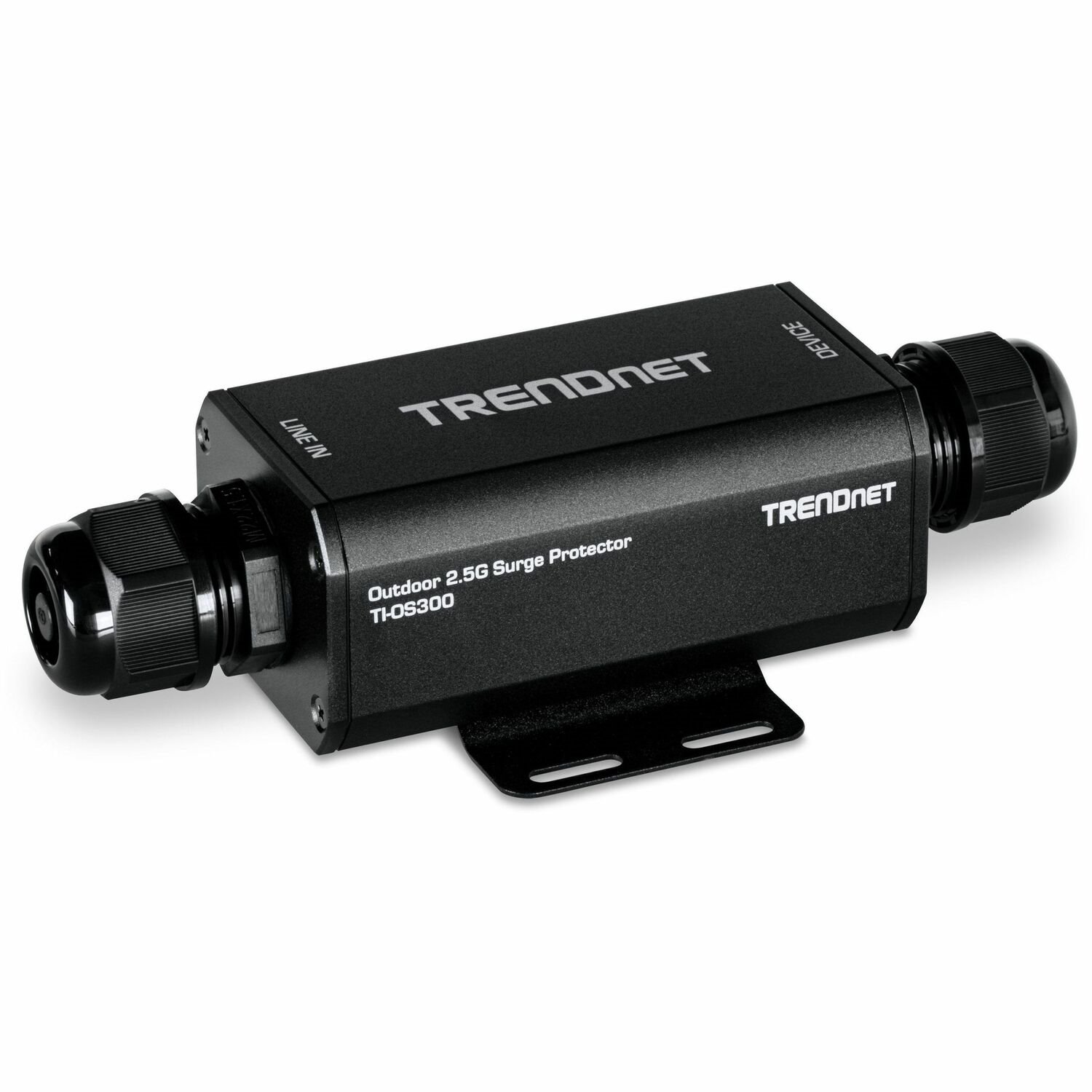

TRENDnet's Outdoor 2.5G PoE++ Surge Protector, model TI-OS300, is installed inline using Ethernet cabling to protect and prevent damage to internal low voltage network devices from electrical surges caused by lightning strikes, electrical overloads, and faulty or damaged wiring. The surge protector supports up to 2.5Gbps networking speeds and PoE++ (95W) devices. The surge protector also features an IP67-rated metal enclosure, detachable mounting bracket, Ethernet cable glands for water protection, and wide operating temperature range of -40°- 75° C (-40° - 167° F) suitable for outdoor installations.
Surge Protection
Gas discharge tube (GDT) protection with a nominal discharge current (8/20µs) of 10kA, clamping voltage of 20V@1kA, and compliant with IEC 61643-21 and IEC 61000-4-5 testing standards
2.5G Networking Speeds
Features two 2.5Gbps RJ45 Ethernet ports and compatible with PoE++ devices (up to 95W)
Industrial Grade Design
Built for industrial network environments, with an IP67 metal enclosure, Ethernet cables glands for water protection, compliance with shock, freefall, vibration, and an operating temperature range of -40°- 75° C (-40° - 167° F).
FEATURES | 2.5G Networking
Features two 2.5Gbps RJ45 Ethernet ports (Line In, Device out)
Surge Protection
Gas discharge tube (GDT) protection with a nominal discharge current (8/20µs) of 10kA and clamping voltage of 20V@1kA
PoE Support
Compatible with PoE (15.4W), PoE+ (30W), and PoE++ (up to 95W) devices
Industrial Design
IP67-rated metal enclosure and Ethernet cable glands for water and dust protection
Wide Temperature Range
Operates within a wide temperature range of -40°- 75° C (-40° - 167° F) suitable for outdoor installations
Compliance
Compliant with shock (EN 60068- 2-27), freefall (EN 60068-2-31, vibration (EN 60068-2-6), IEC 61643-21 (Low voltage surge protective devices), and IEC 61000-4-5 (Surge immunity) standards
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Plug/Connector Type
- RJ-45
- Receptacles
- 1 x RJ-45
- Dataline Protection
- RJ-45
- Power Description
- Maximum Surge Current
- 1 kA
- Power Handling
- 95 VA
- Clamp Voltage
- 20 V
- Maximum Spike Voltage
- 90 V DC
- Reliability
- MTBF
- 239.3 Year
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 167°F (75°C)
- Physical Characteristics
- Product Material
- Metal
- Height
- 1.7"
- Width
- 2.2"
- Length
- 6.69"
- Weight (Approximate)
- 10.51 oz
- Miscellaneous
- Package Contents
- Outdoor 2.5G PoE++ Ethernet Surge Protector
- 2 x Detachable Cable Glands
- Mounting Bracket
- Application/Usage
- Outdoor
- Ingress Protection (IP) Rating
- IP67
- Certifications & Standards
- CE
- FCC
- LVD
- Shock (EN 60068-2-27)
- Freefall (EN 60068-2-31)
- Vibration (EN 60068-2-6)
- Low voltage surge protective devices (IEC 61643-21)
- Surge immunity (IEC 61000-4-5)
- NDAA
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
