Dual-WAN security gateway designed to protect medium to large-sized networks with enterprise-class firewall configuration and threat management features.

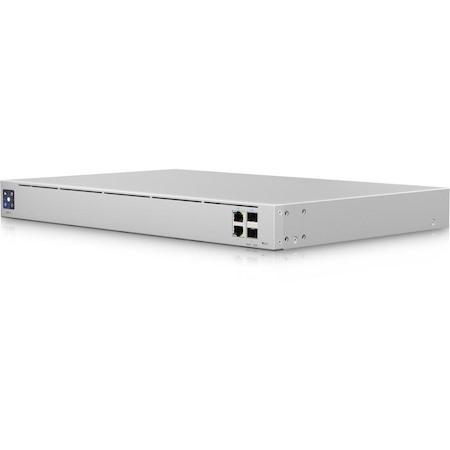

The UniFi Next-Generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks. The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications. It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration. The UXG Pro can be paired with a Cloud Key Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network web application or UniFi mobile app.
Features:
- 1.7 GHz quad-core processor
- (2) WAN ports (GbE RJ45 and 10G SFP+) with failover support
- (2) LAN ports (GbE RJ45 and 10G SFP+)
- Enterprise-class DPI, IPS/IDS, and layered firewall configuration
- Power redundancy when connected to the USP RPS or USP RPS Pro (sold separately)
- SmartPower outlet (125VAC/2A) for an external modem
- 1U-sized, rack-mountable device
- General Information
- Manufacturer
- Ubiquiti Inc.
 - Manufacturer Website Address
- http://www.ui.com
 - Brand Name
- Ubiquiti
 - Product Line
- Unifi
 - Product Type
- Router

- Interfaces/Ports
- Total Number of Ports
- 2
 - Management Port
- Yes
 - Number of WAN Ports
- 2

- I/O Expansions
- Total Number of Expansion Slots
- 2

- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
 - Network Technology
- 10GBase-T

- Power Description
- Power Consumption
- 30 W
 - Power Source
- Power Supply

- Physical Characteristics
- Compatible Rack Unit
- 1U
 - Form Factor
- Rack-mountable
 - Height
- 1.7"
 - Width
- 17.4"
 - Depth
- 11.2"
 - Weight (Approximate)
- 7.54 lb
