- General Information
- Manufacturer
- ViewSonic Corporation
- Manufacturer Website Address
- http://www.viewsonic.com
- Brand Name
- ViewSonic
- Product Line
- ViewBoard
- Product Series
- IFP
- Packaged Quantity
- 1
- Product Type
- Collaboration Display

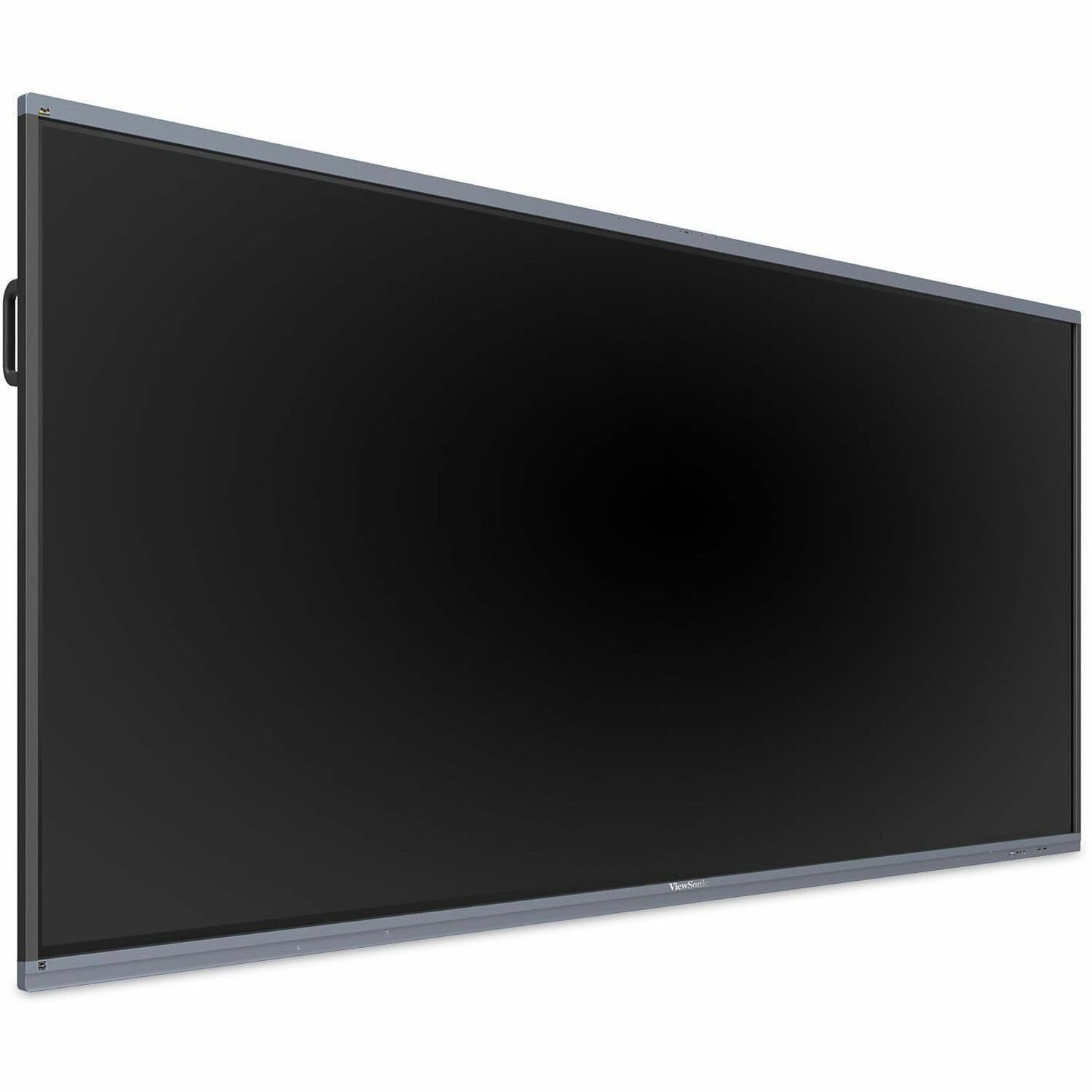

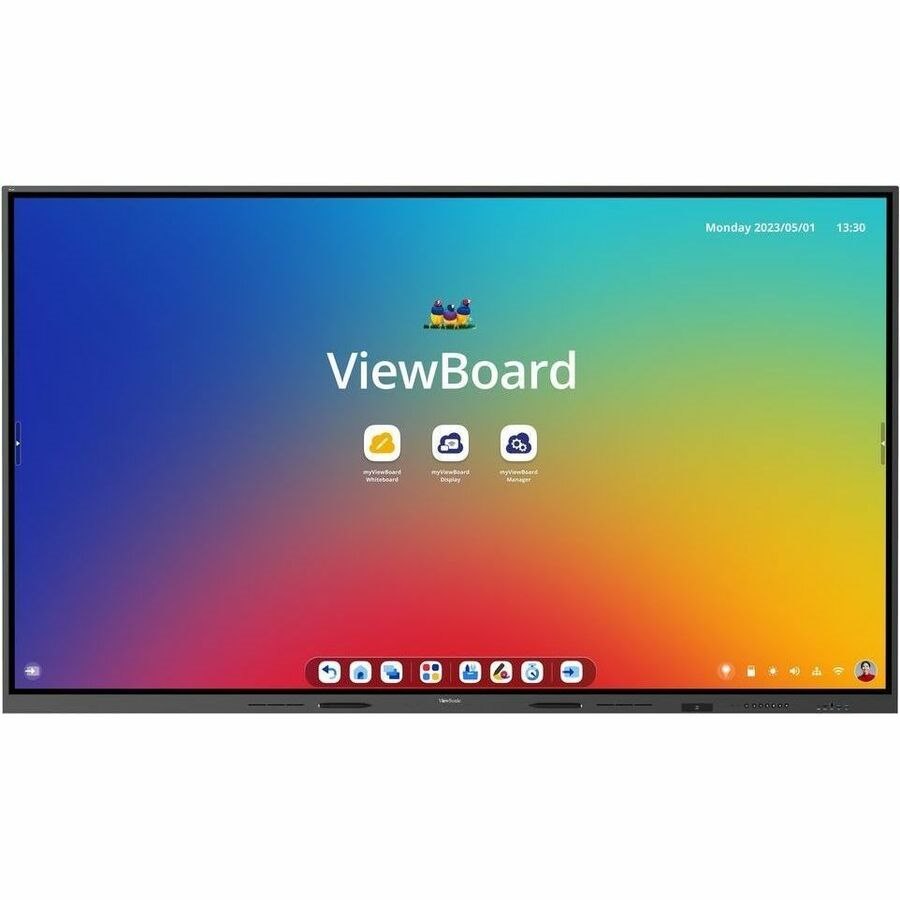

The ViewSonic® ViewBoard® IFP105UW is a 105" interactive display with next-generation whiteboard technologies ideal for collaboration in corporate environments and higher education. With seamless integration to Microsoft Teams Rooms and optimization for Front Row, this ViewBoard display promotes inclusivity and engagement for any of your team huddles, meetings and brainstorming sessions. Whether team members are in the meeting room, on video conference, or participating via chat, everyone can be seen and heard. Plus, with its ultrawide 21:9 aspect ratio and 5K resolution, this display delivers a huge interactive touchscreen and stunning visuals to boost collaboration and productivity. The high-accuracy touchscreen also features intelligent palm recognition technology for an intuitive digital whiteboard experience. A 47W soundbar with integrated microphone delivers optimal audio for everyone in the meeting room, as well as those calling in remotely.
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
3-year limited warranty on parts, labor and backlight, onsite warranty
- Display & Graphics
- Display Screen Type
- LCD
- Backlight Technology
- Direct LED
- Screen Mode
- WUHD
- Screen Resolution
- 5120 x 2160
- Scan Format
- 2160p
- Aspect Ratio
- 21:9
- Response Time
- 6.50 ms
- Contrast Ratio
- 4,000:1
- 5,000:1
- Brightness
- 400 Nit
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Graphics Controller Model
- Mali-G610
- Tempered Glass
- Yes
- Standard Refresh Rate
- 60 Hz
- Touchscreen Information
- Touchscreen
- Yes
- Multi-touch Screen
- Yes
- Number of Touch Points
- 40
- Touchscreen Technology
- Infrared (IrDA)
- Processor & Chipset
- Processor Type
- Cortex A76 + A55
- Processor Core
- Octa-core (8 Core)
- Memory
- Standard Memory
- 8 GB
- Memory Technology
- LPDDR
- Memory Card Supported
- embedded MultiMediaCard (e.MMC)
- Storage
- Flash Memory Capacity
- 128 GB
- Audio
- Speakers
- Yes
- Number of Speakers
- 3
- Microphone
- Yes
- Number of Microphone Array Elements
- 8
- RMS Output Power
- 45 W
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11ax
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.2
- Interfaces/Ports
- HDMI
- Yes
- Number of HDMI Inputs
- 4
- Number of HDMI Outputs
- 1
- Total Number of USB Ports
- 12
- Number of USB 2.0 Ports
- 1
- Number of USB 3.0 Ports
- 6
- USB
- Yes
- Number of Network (RJ-45) Ports
- 4
- Network (RJ-45)
- Yes
- Audio Line In
- Yes
- DisplayPort
- Yes
- Serial
- Yes
- Software
- Operating System
- ViewBoard OS
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Power Consumption
- 275 W
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 1000 x 400
- Height
- 44.5"
- Width
- 98.7"
- Depth
- 4.1"
- Weight (Approximate)
- 201.50 lb
- Miscellaneous
- Package Contents
- 105" 5K 21:9 ViewBoard Interactive Display with Integrated Microphone and USB-C
- Power Cord (3m)
- USB-C Cable (1.8m) Remote control
- AAA Battery
- USB Touch Cable (3m)
- 2 x Stylus
- Quick Start Guide
- Compliance Statement
- RS232 Adapter
- 5 x Clamp
- Camera Plate
- 8 x Screw
- HDMI Cable 3m
- VB-WIFI-004 WiFi Adapter
- Additional Information
- Operating System: ViewBoard OS based on Android 13
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- China Environmental United Certification Center (CEC)
- Energy Efficiency Certification
- ENERGY STAR 8.0
